PSPi 6 Board

$85.95

Meet the PSPi 6.

This is an interface board for a Raspberry Pi. It takes the place of the mainboard in a PSP 1000 series handheld, and let’s you use a Raspberry Pi as the brain.

Please read the GitHub wiki and Refund Policy before purchasing.

For shipment and backorder updates, check out the PSPi 6 Availability post.

Shipping costs are included in the board price. If my website tries to charge you for shipping, please contact me.

Includes:

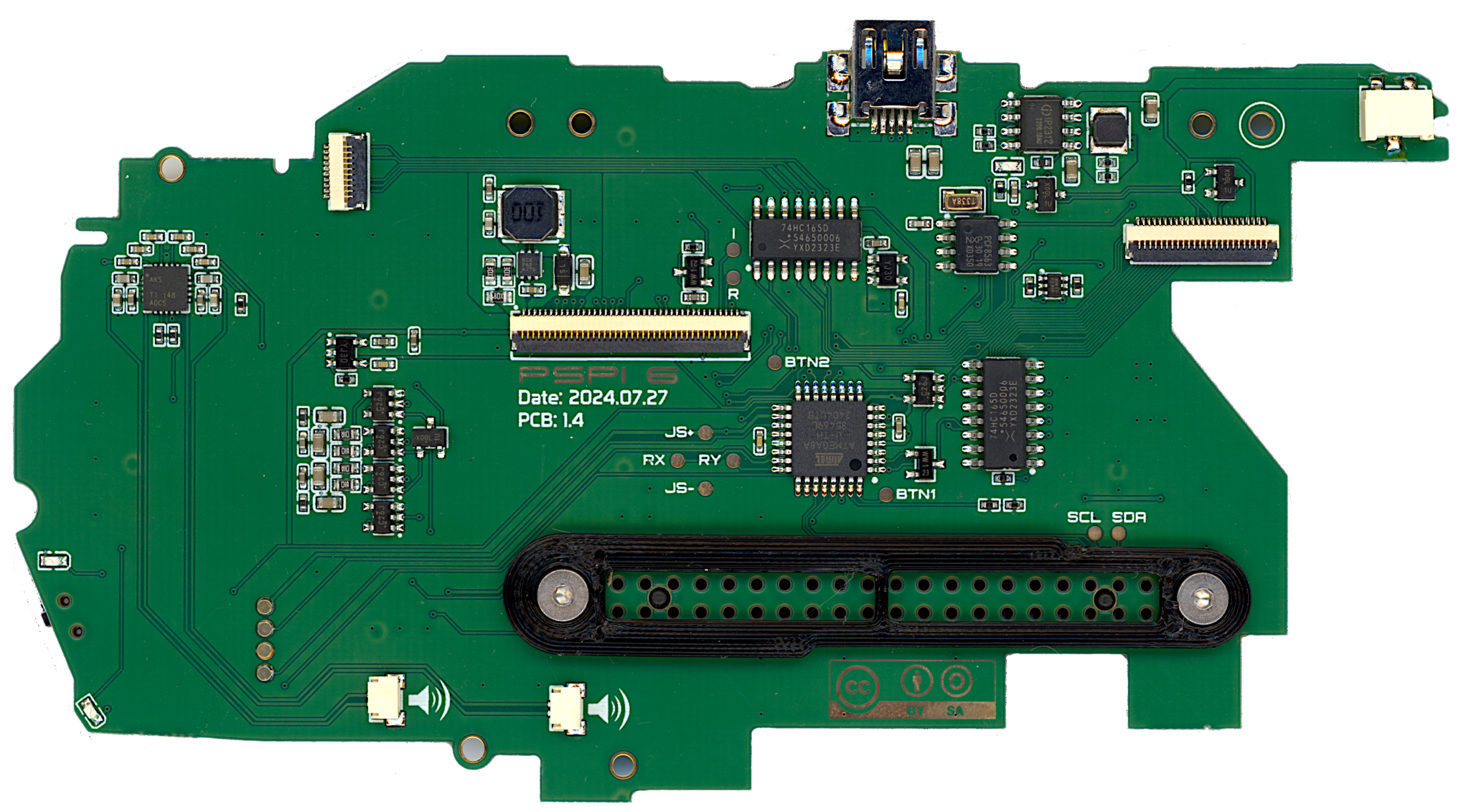

PSPi 6 Mainboard
2 M2.5 6mm standoffs with screws and spacers
DC Barrel Jack Connector
Gold Plated Pads for Joystick
Pin Protection Brace

The PSPi 6 board (and headphone board if you include it) will ship as they arrive from the PCB manufacturer. The PSPi 6 barrel jack connector, joystick gold contact pads, and Headphone board’s headphone connector will be sent along with the board, to be soldered by the purchaser.
I will do a quick visual inspection and flash the firmware before shipping, but thorough testing and final soldering will only be done if you request it (Solder Avoidance Service).

To complete the build, you need the following:
A mostly-complete 1000-series PSP (original fat version only)
4.3″ 800×480 LCD
 (available here and below)
Raspberry Pi Zero, Pi Zero W, Zero 2 W, CM4, or CM4 Lite
Battery with JST PH 2.0mm connector (available here and here and below)
microSD card (up to 1TB)
USB to miniUSB adapter (link) for USB mouse/keyboard/flash drive
PSP Charger (can be the original PSP charger, PSP USB charging cable, or miniUSB cable)

If using a CM4, the following are required:
CM4 Carrier for the CM4 and CM4 Lite (available here and below)
USB to miniUSB cable (link) for flashing an OS to the CM4 eMMC

If you want to use headphones:
PSPi 6 Headphone Board (available here and below)

Available on backorder

For this extra fee, othermod will (1) Solder the barrel jack connector, joysticks pads, and headphone connector to the board, (2) Perform a thorough visual inspection, and remove all edge rails, and (3) Perform a full test on the board functions. There will be some extra processing time if this option is chosen.
Product total
Options total
Grand total

Category:

Additional information

Weight .125 lbs
Dimensions 4 × 3 × 1 in
