PSPi 1000 Version 4 Board and LCD


1/13/18  – Backorders are coming in faster than I am shipping these at the moment (currently there are about 70 backorders). I’ve got a minor board revision and a new assembly rig arriving next week, and it should help speed up the assembly/testing. I love you guys, thanks for being so patient.

Backorders are open for V4. If you prefer to wait until orders are caught up and the board is stocked, just sign up below to be notified when stock is available.

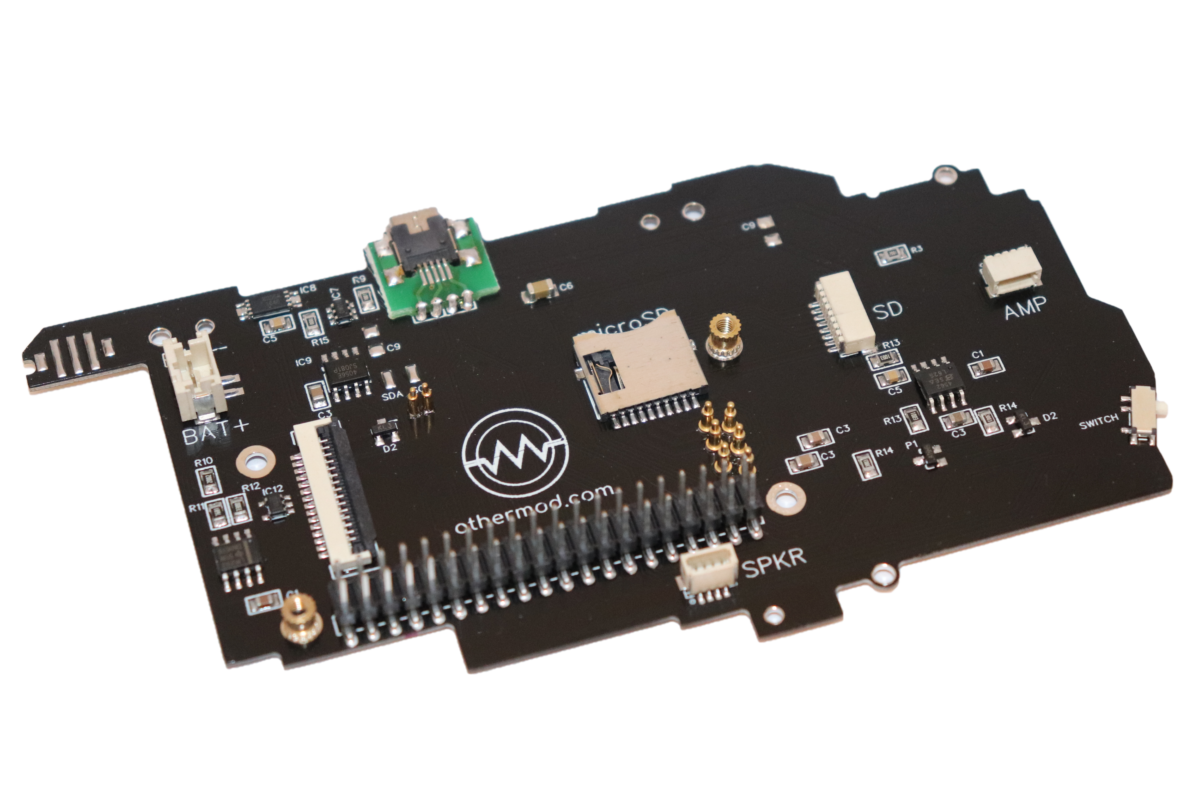

Description:  This was designed for the PSPi 1000 Version 4 build. It’s superior to Version 3 in every way, and is available at the same price that V3 was ($109 price includes both board and LCD).

All-in-one PCB
4.3″ LCD
Wires for speaker modification

You Need the Following to Complete the Build:

  • Broken PSP 1000 Series
  • Raspberry Pi Zero (Version 1.3 or W)
  • MicroSD card
  • Battery with JST-PH Connector (if you want to use the pair of 1.2Ah cell phone batteries from Version 3, you can purchase them here (some soldering required)). This Turnigy battery is also excellent and fits well into the battery compartment, and it has the right connector. The Turnigy battery has a slightly lower capacity, but it’s much easier to attach.

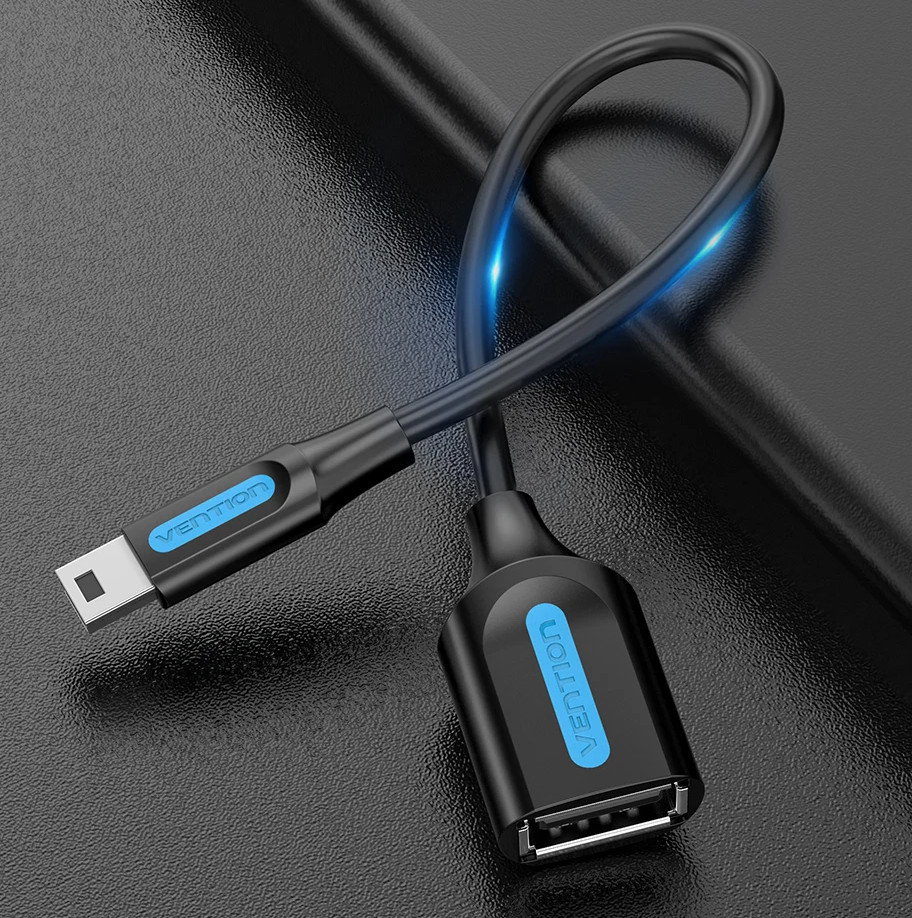

  • USB A/B Adapter (this is the USB data connection for the Pi, and can be purchased here if you don’t have one)
  • Charging Cable (the original PSP charging adapter will work fine, or you can use a PSP USB charging cable)

Share this with others

Available on backorder


Additional information

Weight 0.15625 lbs
Dimensions 4 x 2 x 8 in
